Reasonable factory price for electric and diesel type ore hammer crusher machine

FOB Reference Price:Get Latest Price
$1,160.00 - $5,800.00 / Sets | 1 Set/Sets hammer crusher (Min. Order)
Model Number:
PC
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Hammer Crusher
Application:
Mining
Motor Type:
AC Motor
Power(W):
5.5-450kw
Capacity(t/h):
5-280T/H
Place of Origin:
Henan, China
Brand Name:
Lianke
Dimension(L*W*H):
According to Models
Weight:
0.5-19.6T
Certification:
ISO
Warranty:
12 Months
Product name:
hammer crusher
Feeding size:
Less than 350mm (maximum)
Discharge size:
Less than 8 (minimum)
The Machines classification:
Building Stone Production Line
Color:
Customizable
Spare parts supply:
Paid
Application 1:
Railway, highway, cement, building materials
Application 2:
Fire resistance, ceramics, chemical industry
Installation:
Engineer Guide
Contact:
0086 15617880466
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
600 Set/Sets per Month hammer crusher
Packaging & Delivery
Packaging Details
According to the models of hammer crusher, smaller type will be packed in wooden case.
Larger type will be deliveried in container, or upon the customer's requirement.
Port
Qingdao Port
Product Description

Reasonable factory price for electric and diesel type ore hammer crusher machine

Hammer crusher Introduction



The hammer crusher adopts high-speed rotary hammers to crush material, mainly applied in industries of metallurgy, mining, chemical,cement, construction,refractory material,ceramics and etc. It can be used for barite, limestone, gypsum, terrazzo,coal,slag and other materials medium&fine crushing. By adjusting the clearance of  grizzly bars can get  different sizes outputs. The main working parts include rotor with a hammer (also known as hammer), sieve plate and other components. The rotor consists of spindle, disc, pin and hammer. We have two types electricity and diesel as power source for your  choice.



Diesel type hammer crusher tested in our factory, https://youtu.be/oBQBWfWWkyg
Hammer crusher working in customer working site,https://youtu.be/ZUFAFBFlkqc

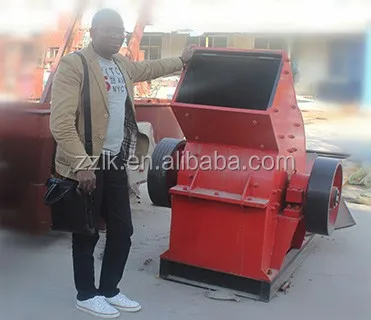

Electric type hammer crusher

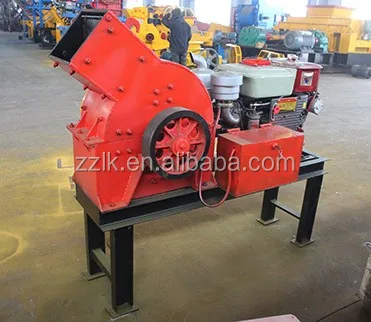

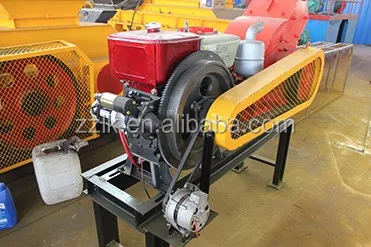

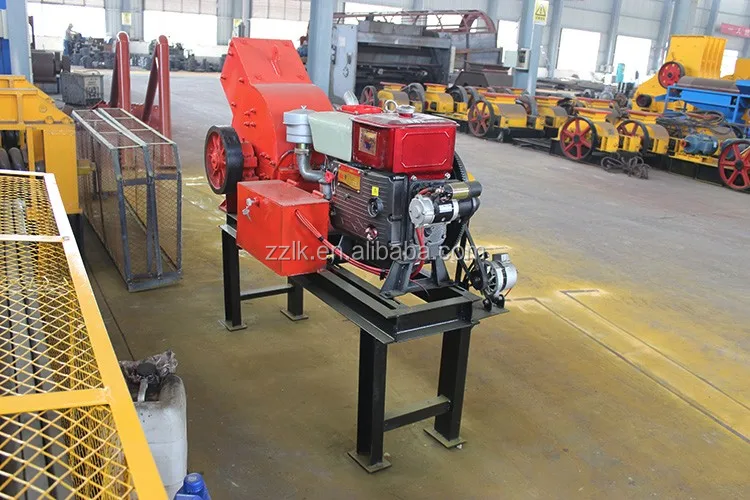

Diesel type hammer crusher

Specific Details

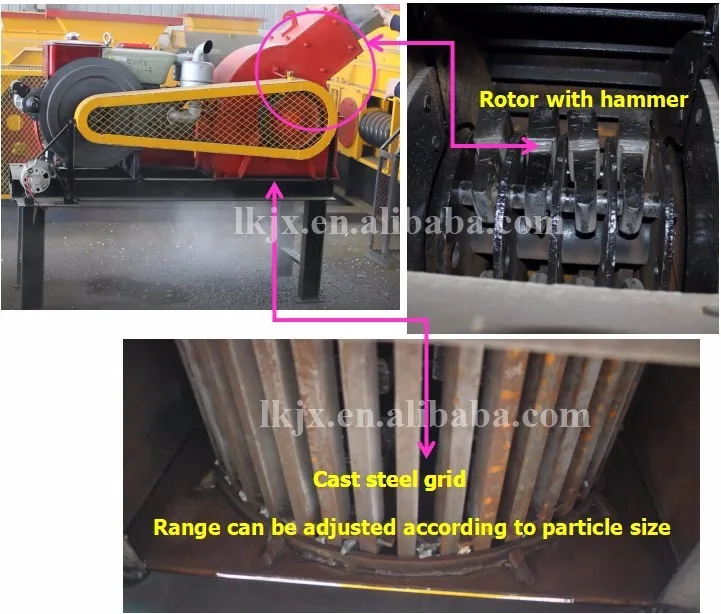

  The hammer crusher is composed of  machine  box, rotor, hammer, impacting lining board and screen board. According to the  requirement  of the customers, this  equipment can adjust the gap between the grating bars to change the discharging granularity. Hammer crusher is widely used for crushing medium hard and crisp materials in mining,  cement, coal,  metallurgy,  building material, highway and chemical industry.

 1.sieve plate        2.rotor disk       3.discharge hole        4. center shaft       5.studdle      6.support ring
 7.feed inlet          8. hammer       9. impact plate         10.Curved lining board             11.connection

Working principle:


  The hammer crusher drives rotor through the motor. The rotor drives the hammer plate on the rotor to rotate at a high speed. After the material enters into the crushing chamber, it is  crushed by high speed impact of the hammer plate. The  finished  material will be discharged out of the  machine through lower screen of the hammer crusher , The particle size can be adjusted by adjusting the screen gap. The motor drives the rotor to rotate at high  speed in the  crushing chamber. Materials from the upper feed port into the machine, the high-speed movement of the hammer blow, impact, shear,  grinding and crushing. The lower part of  the rotor is  provided  with a  sieve  plate. Particles smaller than the size of the sieve in the crushed material are discharged through a sieve plate. The coarse  particles larger than the sieve size are retained on the sieve plate and continue to be struck and ground by the hammer. Finally, out of machine.

Hammer is the most important working parts. Hammer's quality and material  determines capacity, the size of hammer kinetic energy is  proportional to hammer weight, which can be customized.new high quality  multi-element  high  chromium manganese steel  composite  casting, the  service  life is several times than general hammer.

Hammer crusher technical parameters:

Model
(PE)
Feed size
 (mm)
Discharge size (mm)
Capacity (t/h)
Motor
 (kw)
Weight
(t)
PC-200*300
less than 80
less than 8
1-5
5.5
0.5
PC-400*300
less than 100
less than  10
5-10
7.5
0.8
PC-600*400
less than 120
less than 15
10-25
18.5
1.5
PC-800*600
less than 120
less than 15
20-35
55
3.1
PC-1000*800
less than 200
less than 15
20-40
90
7.9
PC-1000*1000
less than 200
less than 15
30-70
132
8.7
PC-1250*1250
less than 250
less than 25
50-100
185
10.5
PC-1300*1200
less than 250
less than 30
60-150
240
13.6
PC-1400*1400
less than 280
less than 30
120-170
280
16.2
PC-1600*1600
less than 350
less than 30
200-280
450
19.6

More Specific drawing and details of this hammer crusher,inquiry me, or contact me directly

My whatsapp 0086 15617880466

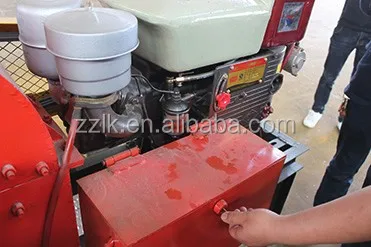

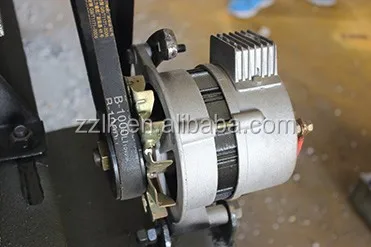

Diesel type hammer crusher has additional parts compared with electric type

Packing & Delivery

Less than Container Load Delivery

Model small type hammer crusher will be packed with wooden case to delivery.

Full Container Load Delivery

 Large Models of hammer crusher will be naked    packing to put into the container to delivery.

Related Products

Jaw crusher

3 Ton electric dumper

Raymond mill

You can click the above picture to check the related product details.

FAQ Confirm Machine

Because there are different models of our machines, with different prices,

Need ask you some details to send you the more suitable machine quotation,

Questions as follows, please send me inquiry with that questions' answers, thanks.

Q1: Which kind of raw material you are going to crush?
Q2: What is the maxmium input size of the raw material?
Q3: What's the production capacity per hour you need?
Q4: What's the output size and application for the final product?
Once we get your answers of that questions, we can provide you suitable machine
Q5: What is the normal protection for the hammer crusher?
A5: Closing and checking hammer crusher periodically, regularly check the driving belt of hammer crusher and lubrication of mechanical parts
Q6: How to maintenance the hammer crusher?
A6: In order to ensure the normal operation of the hammer crusher, in addition to correct operation, you must have plan for maintenance, including minor repairs, moderate maintenance, overhaul
