Mini mobile brick making machine, machine for make bricks, egg laying block molder

FOB Reference Price:Get Latest Price
$2,280.00 - $3,710.00 / Sets | 1 Set/Sets egg laying block molder (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brick Raw Material:
cement,crushed stone,sand,water
Capacity:
2400-17500/8 hours
Type:
hollow/interlock/paving block making machine, egg laying block molder
Power:
6.3KW
Certification:
CE/ ISO9001
Condition:
New
Processing:
Brick Molding Machine
Method:
mould vibration
Automatic:
manual/semi-automatic
Place of Origin:
Henan, China
Brand Name:
Lianke
Model Number:
QMJ4-35M
Voltage:
380V, 380V
Dimension(L*W*H):
1350*1300*1600mm
Weight:
750kg
Color:
customerized
Type of enterprise:
manufacture
Molding Cycle:
35 seconds/mold
Pallet size:
850*540*30mm
Block size 1:
390*240*190 mm
Block size 2:
390*190*190mm
Block size 3:
240*115*90mm
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
200 Set/Sets per Month egg laying block molder
Packaging & Delivery
Packaging Details
LCL, packaged by wooden boxes for egg laying block molder
FCL, packaged by 20ft container or 40ft container.
Port
Qingdao
Lead Time :
Shipped in 15 working days after payment
Product Description

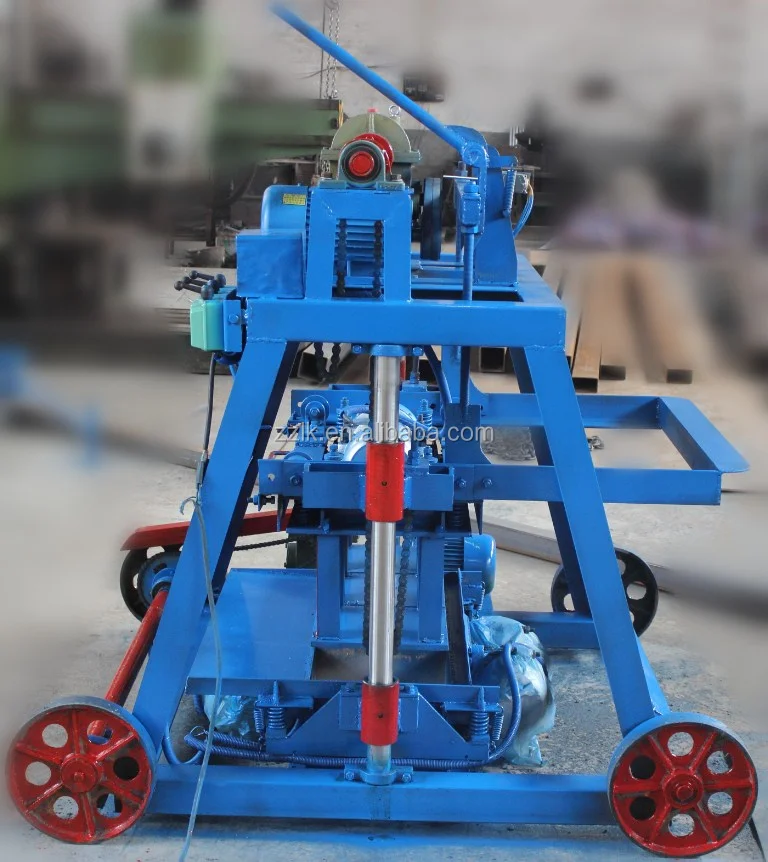

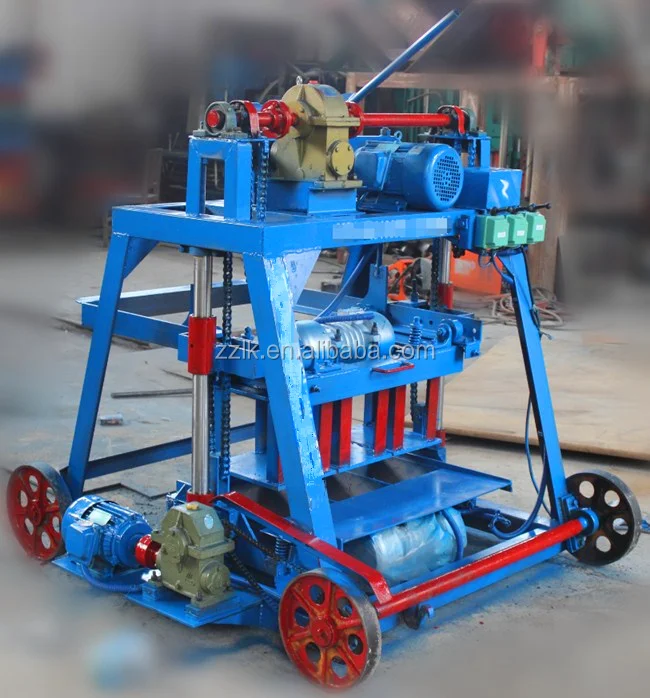

Mini mobile brick making machine, machine for make bricks, egg laying block molder

Concrete egg laying block molder can produce minitype hollow block which is widely used in construction. It consists of cement, sand, pisolite and other materials with high hollow ratio, low cost investment, quick effectiveness.

It has an easy production process, less investment and can have a large-scale production.

Technical Parameters
Details
1
Model
QMJ4-35M
2
Voltage
380V
3
Power
6.3KW
4
Molding Cycle
35 seconds/mold
5
Pallet size
850*500*30 mm
6
Dimension( L*W*H )
1350*1300*1600 mm
7
Weight
750 kg

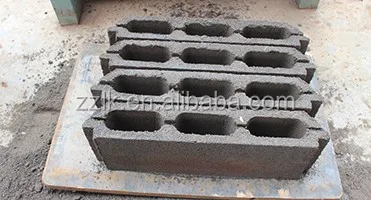

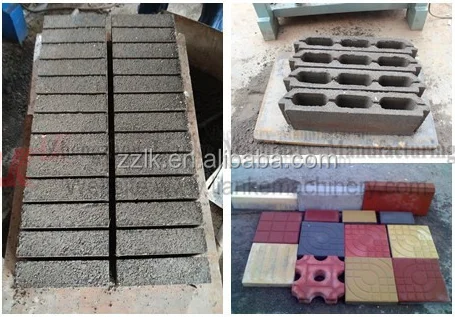

Block/brick type and output
Block size (mm)
Molding Cycle
Pieces/Mold
0utput (8 Hours)
390*240*190
35 s
3 pcs.
2400 pcs.
390*190*190
35 s
4 pcs.
3000 pcs.
390*120*190
35 s
6 pcs.
5000 pcs.
240*115*90
35 s
9 pcs.
7400 pcs
240*115*53
35 s
21 pcs.
17500 pcs

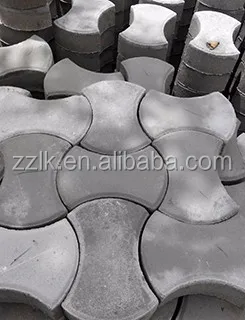

Please Note: The block/brick size can be customized.
Detailed Images

The following are some details of egg laying block molder

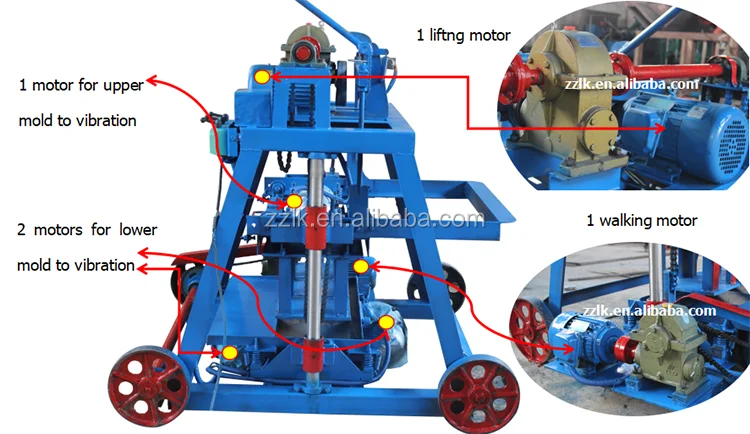

This machine includes 5 pieces motors, 1.1kw*3 +1.5kw*2 = 6.3kw

1.1kw: 1 motor for upper mold vibration, 2 motors for lower mold vibration.

1.5kw: 1 lifting motor and 1 walking motor.

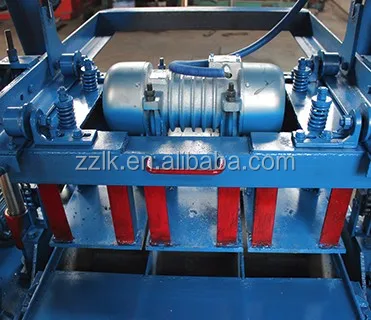

Vibrating motors

With 1 piece motor for upper mold and 2 pieces motors for lower mold vibration, good effect.

Walking motor

After finishing to make blocks, this machine can walk by itself, no need worker to push or pull.

Molds
High quality and durable.

The mold can be customized.

One set of free molds will come with main machine.

Our Service

Pre-Sales Service

*Real and Effective PRICES.
*Production quality protection and Shipment on-time.
*Payment production.

After-Sales Service

*The quality guarantee is 12 months after installation and commissioning.
Packing & Delivery

LCL---- Packaged by wooden boxes or tin trunk of egg laying block molder

Our Company

Founded in 1985 as a government-owned enterprise, and then regrouped and re-registered in 2008 as a private company. Zhengzhou Lianke Machinery Manufacture Co.,Ltd is a Chinese specialized manufacturing enterprise incorporating the research, development, production and sale of mainly building material making machinery, and mining machinery such as cement roof tile machine, terrazzo making machine, paving block machine, Manual brick maker , mining processing equipment, crusher, electric dumper truck, etc.

Related Products

Please check the Machine's video links on YouTube for more details:


Other Related Videos:
Link 1----Semi-automatic QMJ4-35C: https://youtu.be/r76KfVVaDIM
Link 2----Full automatic: https://youtu.be/pLKfpOptPWc
Link 3----Full automatic: https://youtu.be/b5uqZhNk8Kw

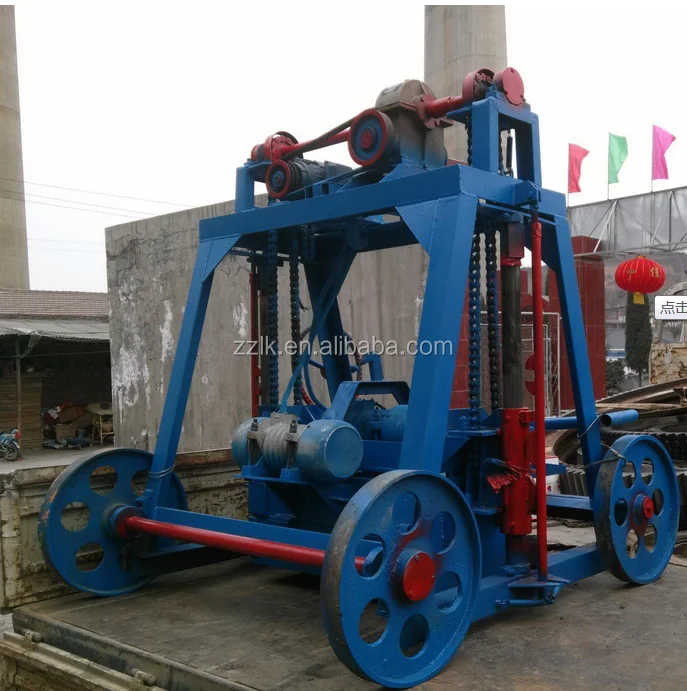

Semi automatic brick machine
